Two shot molding (also known as 2K injection molding) lets you integrate two materials or colors seamlessly into one part in a single molding cycle. This reduces assembly, enhances product aesthetics, and enables complex multi-material designs. But to harness its full benefits, design must account for the technical challenges unique to 2K processes.
As one of Keyplast’s core specialties, we believe excellent part design is the foundation of successful two-shot molding.
Key Takeaways:
Choose materials that bond well and have compatible thermal/shrinkage profiles
Use mechanical interlocks and sufficient bonding area
Carefully design gates, runners, and mold motion to support bidirectional flow
Simulate and prototype early to uncover issues before full-scale production
Partner with experienced molders who understand the nuances of 2K tooling and process control
What is Two Shot Molding?

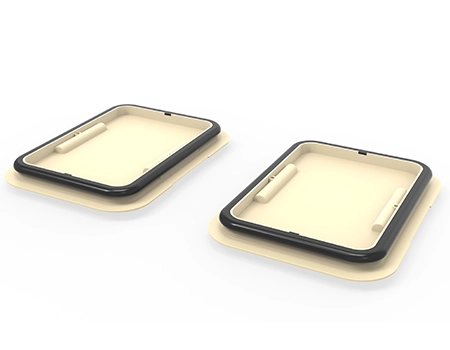

Two shot molding injects a first material into a mold, then transfers that partially formed component via rotation, indexing, or sliding, to a second cavity where a second material is injected. The materials bond to form a unified, composite part. This process allows features such as integrating hard substrates with soft elastomers, or dual-color parts, without requiring secondary assembly.
Why Choose Two Shot over Overmolding or Insert Molding?
Stronger Molecular Bonds: Since both injections happen within a continuous molding cycle, the two materials can form stronger chemical bonds than in separate overmolding steps, which may rely more on mechanical adhesion.
Elimination of Secondary Steps: Two shot molding merges multiple parts in one cycle—no manual placement or additional assembly is needed. This lowers labor costs and reduces defects.
High Precision & Repeatability: With well-designed tooling and process control, two shot parts maintain tight tolerances and consistent aesthetics.
Design Flexibility: You can combine rigid and soft materials, integrate seals, grips, or multiple colors into a single molded piece.
However, tooling complexity, cost, and material compatibility constraints are nontrivial challenges.
Design Best Practices for Two Shot Molding
Below is a refined set of guidelines for designing parts intended for two-shot molding:
Interfacial Bonding Design
Maximize Bond Surface: Larger contact area improves adhesion.
Mechanical Interlocks: Use grooves, undercuts, knurls, or micro-structures to reinforce bonding, especially if chemical adhesion is weak.
Substrate Texturing: A lightly textured first-shot surface encourages improved bonding with the second material.
Flow Path Alignment: Ensure the second-shot flow direction is optimized to pass uniformly over the bonding surface.
Wall Thickness & Uniformity
The first-shot substrate must be robust enough to withstand back pressures during the second injection.
Avoid overly thick sections to reduce sink marks or stress.
Maintain uniform wall thickness wherever possible to reduce warpage and stress gradients.
Draft & Demolding Considerations
Provide adequate draft (e.g., 1°–3° or more) for both materials to release cleanly.
Coordinate which mold half carries each part during rotation or transfer, so the component stays on the correct side for ejection.
Minimize complex undercuts unless slides or collapsible cores are incorporated.
Gate & Runner Strategy
First-Shot Gate Location: Select a gate position that doesn’t interfere with subsequent cavity rotation or second-shot flow.
Runner Shutoff: The runner for the inactive shot must be blocked or isolated during the other shot.
Second-Shot Flow: Keep flow length short, use balanced runner design, and consider sequential gating to avoid cold flow, weld lines, or short shots.
Material Compatibility
Inject the material with the higher processing temperature or rigidity first; flow softer or lower-temperature material in the second shot.
Ensure the two polymers have chemical or mechanical compatibility to achieve adhesion. Unmatched pairs may delaminate.
Match shrinkage rates, coefficients of thermal expansion, and viscosity to reduce internal stresses.
Avoid combining amorphous and semi-crystalline materials unless carefully engineered.
Limit the mass difference between two materials to avoid imbalance in flow control.
Tooling & Mechanical Structure
Use precision rotating platens, sliding systems, or indexing mechanisms to transfer the first-shot piece reliably.
The mold base must resist deformation from both shot pressures.
Integrate robust cooling channels that serve both shots without thermal interference.
Support mechanical components like slides, lifters, ejector pins, and alignment features to survive rotational stress and repeated cycles.
Tolerance, Warpage & Shrinkage Control
Use CAE simulation for both shot phases to anticipate warpage and internal stress.
Use symmetric part layout and stiffening ribs to maintain stability.
Match material shrinkage characteristics or choose materials with complementary shrinkage.
Avoid abrupt geometry changes or thick-to-thin transitions that lead to stress concentration.
Surface Finish
Plan interfaces so the visual transition between materials appears smooth and consistent.
Use matching texture or color transitions to hide seam lines.
Ensure mold alignment and tight shutoff zones to prevent flash or mismatches at the interface.
Prototype & Validation
Mold T1 prototypes to test interface bonding, dimensional stability, and visual quality.
Perform mechanical tests (peel, shear) on the bonded interface.
Test for aging, thermal cycling, and user conditions.
Iterate tooling adjustments prior to full production runs.
Common Defects & Troubleshooting
Even well-designed parts can face issues. The following defects and fixes are commonly cited in industry guides:
| Defect | Cause | Fix/Mitigation |
| Flash, curling, peeling at shut-off | Poor sealing or material too thin in shut-off region | Add a “step” or accent groove, or enhance shut-off design in the first-shot profile. |
| Vestige (first-shot protrusion) | Tab gates produce visible marks (vestiges) | Cover with second-shot material, or use hot-tip gate designs where feasible. |
| Weak bond/delamination | Incompatible materials or small bonding area | Increase contact area, add mechanical interlocks, or change material pairing. |
| Short-shot during second injection | Flow blocked or poor gate design | Revisit runner/gate layout, ensure sufficient injection pressure and melt flow. |
| Warpage/differential deformation | Mismatch in shrinkage or cooling | Use symmetric design, matched materials, and mold simulation to optimize cooling. |
As a professional two shot molding company, Keyplast applies advanced process monitoring and real-time adjustment to minimize defects and refine the cycle.
Two Shot Injection Molding Use Cases
Consumer Electronics & Handheld Devices: Cases combining hard plastic with soft overmold grip surfaces, or dual-color aesthetic elements.
Automotive Interior Components: Buttons, knobs, trims that combine soft-touch overlays and rigid structural elements.
Medical Devices: Ergonomic handles or interfaces requiring both rigidity and soft touch for patient comfort.
Appliances & Tools: Handles, switches, or covers that need multi-material interaction.
Plated or Decorative Regions: For example, you can inject ABS substrate for plating, then overlay with another material for design contrast.
Because it integrates materials in one molding step, two shot molding suits high-volume, high-precision, aesthetic-critical parts.
Designing successful two-shot molded parts requires thoughtful synergy between mechanical structure, materials, and process constraints. By integrating the best practices summarized above, bonding design, gate strategy, material matching, mold mechanics, and defect mitigation—you can raise the likelihood of success. With well-executed design and tooling, two-shot molding can unlock premium functionality, aesthetics, and cost savings across complex plastic part projects.
